12 VOLT ENGINEERED PLASTIC PUMPS
Simple to use. Hooks up to a 12 volt battery.
  • When used in water, all pumps are rated for continuous use. No need for a Cool Down!
  • All Pumps can run dry for up to 2 hours without motor damage!
  • All pumps are auto-primed
  • All Pumps fit in to 2" well
  • All Pumps are rated for over 400 hours of use when used in water
  • All pumps can handle higher levels of turbidity in the water**

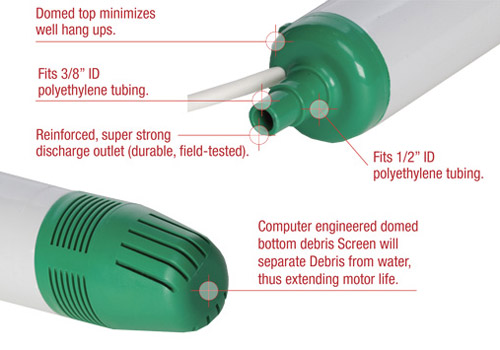

All Engineered Plastic Pumps now feature a domed top and bottom.


Non-Return (Non Vented) Check Valve

Top-fitting accessory used to prevent water back-flow when technician shuts off pump. (Ideal for Low Flow Sampling. Used With Standard and High Performance Engineered Plastic Pumps.

Item# PA-15020

12 VOLT STANDARD ENGINEERED PLASTIC PUMPS

CYCLONE
PUMPING DEPTH: 25 FT DTW* (7.62 meters)
  • Supplied with 35 feet of heavy duty 12 gauge wire
  • Dimensions: 1.7"O.D.x7" Length
  • Use With: Optional Low Flow Sampling Controller
    (PA-10800)
  • Can be used with 3/8" or 1/2" ID Low Density Polyethylene Tubing
  • Maximum Amp Output 4 AMPS


Item No. P-10100

Veiw Pump Chart>>
Back To Top>>

MINI-TYPHOON
PUMPING DEPTH: 40ft. DTW* (12.2 meters)
  • Supplied with 50 feet of heavy duty 12 gauge wire
  • Dimensions: 1.7"O.D.x12" Length
  • Use With: Optional Low Flow Sampling Controller (PA-10800)
  • Can be used with 3/8" or 1/2" ID Low Density Polyethylene Tubing
  • Maximum Amp Output 7 AMPS


Item No. P-10150

Veiw Pump Chart>>
Back To Top>>

TYPHOON
PUMPING DEPTH: 50ft. DTW* (15.25 meters)
  • Supplied with 60 feet of heavy duty 12 gauge wire
  • Dimensions: 1.7"O.D.x12" Length
  • Use With: Optional Low Flow Sampling Controller (PA-10800)
  • Can be used with 3/8" or 1/2" ID Low Density Polyethylene Tubing
  • Maximum Amp Output 8 AMPS


Item No. P-10200

Veiw Pump Chart>>
Back To Top>>

TEMPEST / TWISTER
PUMPING DEPTH: 60ft. DTW* (18.3 meters)
  • Supplied with 70 feet of heavy duty 12 gauge wire
  • Dimensions: 1.7"O.D.x17" Length
  • Use With: Optional Low Flow Sampling Controller (PA-10800)
  • Can be used with 3/8" or 1/2" ID Low Density Polyethylene Tubing
  • Maximum Amp Output 11 AMPS


Item No. P-10250

Veiw Pump Chart>>
Back To Top>>

MINI-MONSOON
PUMPING DEPTH: 70ft. DTW* (21.3 meters)
  • Supplied with 80 feet of heavy duty 12 gauge wire
  • Dimensions: 1.7"O.D.x20" Length
  • Use With: Optional Low Flow Sampling Controller (PA-10800)
  • Can be used with 3/8" or 1/2" ID Low Density Polyethylene Tubing
  • Maximum Amp Output 13 AMPS


Item No. P-10300

Veiw Pump Chart>>
Back To Top>>

TORNADO
PUMPING DEPTH: 85ft. DTW* (25 meters)
  • Supplied with 90 feet of heavy duty 10 gauge wire
  • Dimensions: 1.7"O.D.x24" Length
  • Use With: Optional Low Flow Sampling Controller (PA-10800)
  • Can be used with 3/8" or 1/2" ID Low Density Polyethylene Tubing
  • Maximum Amp Output 15 AMPS


Item No. P-10330

Veiw Pump Chart>>
Back To Top>>

ABYSS
PUMPING DEPTH: 220ft. DTW* (67 meters)
  • Supplied with 230 feet of heavy duty 10 gauge wire
  • Dimensions: 3.5"O.D.x12" Length
  • Use With: Optional Low Flow Sampling Controller (PA-10800)
  • Use only 1/2" ID Low Density Polyethylene Tubing
  • Field replaceable wear out parts
  • 4 amp max consumption
  • Great for long term pump tests
  • Can run dry up to 2 hours!
  • Designed for long-term and pump and treat applications.
  • Average motor life span 3000-4000 hours
  • Can run continuous 24/7 without a cool-down period.
  • We cut wire to your requested lengths – free of charge!
  • Pulls 4 amps, perfect for battery stacking from solar and wind power
  • Field kit available for easy motor change-out


Multiple options available with this pump: Flexible – durable - reliable
(Standard Low Flow Sampling Controller optional but not required) Specially engineered dry –run sensor controller available. This sensor controls the flow of your purging, senses and shuts off the pump when the well runs dry. Turns the pump on when water is present. Specially designed built-in timer controller. Let your Abyss pump know when you need it to run – or not The abyss pump does just about everything you can think of for your dedicated 4” well applications. It doesn’t get more simple than this!®

Item No. P-10380

Veiw Pump Chart>>
Back To Top>>
DTW Means Depth-To-Water
